What Is a Multi-Sensor Stack, Really?
At its core, a multi-sensor stack is a layered system where multiple sensor types (visual, thermal, acoustic, motion, environmental) work in parallel to generate a contextual understanding of the world around them. Instead of relying on a single data stream, these systems combine diverse inputs to richer perception and smarter decision-making. Some examples include:
Autonomous Navigation in Industrial Robotics:
Imagine a robot navigating a dynamic factory floor. Instead of following pre-programmed paths, it uses simultaneous localization and mapping (SLAM) to explore and react in real time.By fusing LiDAR, IMU, and visual data (from a RealSense depth camera for example) it can generate a live voxel map of its environment. This map is constructed by combining depth images and odometry data to build a 3D point cloud.
That point cloud is processed to identify free and occupied spaces, then converted into a 2D occupancy map used for real-time path planning. This level of autonomy is only possible through robust sensor fusion, processing visual SLAM, IMU, and wheel odometry in concert to deliver precise pose estimation and obstacle avoidance.
Dig deeper into visual SLAM and voxel mapping. Check out the documentation for depth-vslam and voxel-map samples on Dragonwing.
Predictive Maintenance in Smart Factories:
By combining vibration and thermal sensors, machines can detect signs of abnormal wear long before failure occurs. These sensors track temperature fluctuations, resonance shifts, and micro-vibrations. This data, when analyzed collectively, indicates developing mechanical problems.
Agricultural Automation:
Modern farming leverages multi-modal sensor stacks to optimize crop yield. Moisture sensors monitor soil conditions, light sensors gauge sun exposure, temperature sensors detect seasonal shifts, and visual cameras assess plant health. Together, these inputs feed AI models that guide irrigation, fertilization, and harvesting with precision.
The Qualcomm® Sensing Hub (QSH) is foundational to all of this. It enables:
- Plug-and-play sensor interoperability across Dragonwing ecosystems
- Ultralow-power modes with local sensor memory for always-on monitoring
- Flexible configuration for GPIOs, power rails, and polling strategies
- Software-based sensors for motion, positioning, and activity recognition
- Low-latency data access via the QSH direct channel
The Dragonwing portfolio and edge AI from Qualcomm Technologies bring this sensor intelligence to industrial IoT, combining powerful NPUs, flexible sensor interfaces, and AI-ready frameworks.
How a Multi-Sensor Stack Enables Scalable Solutions
The true power of a multi-sensor stack lies in how sensor inputs are fused, interpreted, and acted upon through AI at the edge. What looks like a simple network of sensors is actually sensors + data aggregation + AI inference + connectivity, working collectively as “the stack”.
For developers, scalability means being able to design once and deploy many times across a wide range of devices and performance tiers, without rewriting software or retraining AI models. A scalable stack unlocks consistency across software and hardware, which allows builders to:
- Reuse AI models, sensor logic, and firmware across device classes
- Scale from 5 to 15+ sensors depending on platform capacity
- Optimize workloads dynamically between always-on microcontrollers and high-performance cores
- Deploy flexibly, running edge AI models locally or offloading to the cloud based on latency, connectivity, or power constraints
The Qualcomm Sensing Hub provides a consistent, low-power foundation across platforms, making it easy for developers to scale across devices. It offers OS and hardware independence for plug-and-play portability, ultra-low power local memory for background sensing without waking the main processor, and factory calibration for improved accuracy and long-term stability.
Qualcomm Sensing Hub also supports software-based motion and activity sensors, extending perception without extra hardware, and direct channel APIs for low-latency, high-speed data handling, which is essential in real-time workloads like robotics and drones.
Real-World Scaling Examples
1. Industrial Monitoring:
On a lower-tier device, environmental sensors may simply stream raw data to the cloud. On a higher-tier Dragonwing ecosystem, that same system can fuse local sensor data, run anomaly detection models, and respond via an on-device LLM interface, without requiring a round trip to the cloud or external compute.
2. Navigation and Autonomy:
A robotic arm or drone equipped with vision, IMU, and acoustic sensors can use depth-vSLAM + Qualcomm Sensing Hub direct channel to navigate physical spaces in real time. Sensor fusion generates voxel maps and odometry locally, enabling the system to avoid obstacles, update its path, and even act autonomously in dynamic environments, while staying within power constraints.
What Makes a Scalable Multi-Sensor Stack?
A scalable multi-sensor stack requires building a foundation that can grow with your application while minimizing rework. For developers, scalability means flexibility across software, models, platforms, and deployment modes.
Here’s what to look for:
1. Cross-Platform Software Portability
The ability to write once and deploy everywhere is critical. Developers shouldn’t have to rewrite code when moving from a mid-tier platform like the Dragonwing QCS6490 to a high-end platform like the Dragonwing IQ9 series.
Qualcomm toolchains and SDKs, including Qualcomm Intelligent Multimedia (IM) SDK, Qualcomm Intelligent Robotics (IRP) SDK, and Qualcomm Neural Network /Qualcomm AI Engine Direct, ensure interoperability across devices powered by Snapdragon, helping developers maintain a consistent codebase while scaling performance.
2. AI Model Flexibility
AI models should be usable across the stack, whether deployed on-device, in the cloud, or in a hybrid mode.
With Qualcomm Technologies platforms, you can run smaller LLMs (1B–3B parameters) directly on dev kits for fast, private edge inference, while larger models like 7B, 14B, or more can run in the cloud. This hybrid AI approach allows developers to match compute and cost efficiency to each use case.
3. Performance Tier Matching
Different applications demand different levels of compute, and platforms need to scale accordingly. For example, mid-tier systems like the Dragonwing QCS6490 support up to five cameras, ideal for basic multi-sensor applications.
At the higher end, the Dragonwing IQ9 platform supports up to 16 cameras, enabling advanced industrial, robotics, or vision-heavy workloads. This ability to scale sensor count, inference complexity, and compute load lets developers design once, then deploy across multiple tiers without reinventing their stack.
4. Cloud Optionality
Not every workload needs cloud support, but some do benefit from it. A scalable stack should allow you to run latency-sensitive inference directly on-device while still offering the ability to offload larger, less time-sensitive workloads to the cloud.
This balance depends on application business logic, connectivity availability, and cost constraints, but the flexibility is built into Dragonwing ecosystems by design.
5. Unified Tooling and OS Support
Finally, scalability is about development experience. Whether you’re building on Linux, Yocto, or Ubuntu, you need consistent tools and SDKs that work across device classes.
Qualcomm Technologies delivers this through unified frameworks like Qualcomm Intelligent Multimedia (IM) SDK, Qualcomm Intelligent Robotics (IRP) SDK, and Qualcomm AI Engine Direct, helping developers move smoothly from prototype to deployment across the Dragonwing ecosystem.
A Guide for First-Time Developers
Building the Right Eyes and Ears through Sensor Selection
Every IoT application begins with perception, which means choosing the right sensors for the job. Depending on your use case, you may need to capture environmental conditions, track movement, recognize patterns in sound or vision, or detect presence in dynamic spaces. A scalable multi-sensor stack blends these inputs into a coherent picture of the world.
Here are some of the most common sensor categories in industrial IoT:
| Category | Example Sensors | Typical Use Cases | Common Interfaces |
| Environmental | Temperature, humidity, gas/chemical, barometric pressure | Smart HVAC, crop monitoring, industrial safety | I²C, UART |
| Motion/ Position |
Accelerometers, gyroscopes, magnetometers (IMUs) | Robotics navigation, drone stabilization, wearables | SPI, I²C |
| Imaging/Visual | RGB cameras, IR sensors, LiDAR | Quality inspection, depth mapping, autonomous navigation | MIPI CSI |
| Acoustic/ Vibration |
Microphones, piezoelectric vibration sensors | Predictive maintenance, anomaly detection, sound classification | I²S, SPI |
| Proximity/ Presence |
Ultrasonic, radar, capacitive touch | Automation, safety systems, touchless interfaces | UART, GPIO |
What ties these together is not just the sensor variety, but the ability to handle different data rates and interfaces. The Dragonwing ecosystem supports a rich peripheral set to enable this diversity: from low-speed I²C for temperature sensors, to SPI for IMUs, to high-bandwidth MIPI CSI interfaces that enable multi-camera systems.
For developers, this means the freedom to experiment with sensor fusion at scale, even in constrained environments. A robotics project might combine LiDAR, IMU, and visual inputs for SLAM navigation, while a factory monitoring solution could merge vibration, thermal, and acoustic signals for anomaly detection.
Making Sensors Speak the Same Language with Data Aggregation
Once your sensors are collecting data, you need to harmonize those streams. Each sensor often speaks a different “language,” relying on its own communication protocol:
- I²C: Ideal for low-speed sensors such as temperature or humidity monitors
- SPI: A higher-speed interface used by ADCs and IMUs
- UART: Common in GPS, radios, and debugging channels
- MIPI CSI: Designed for high-throughput image sensors and multi-camera systems
- I²S: The go-to interface for high-quality audio devices
On their own, these protocols create silos. For developers, what’s needed is a unified framework that normalizes this diversity into consistent, usable data streams.

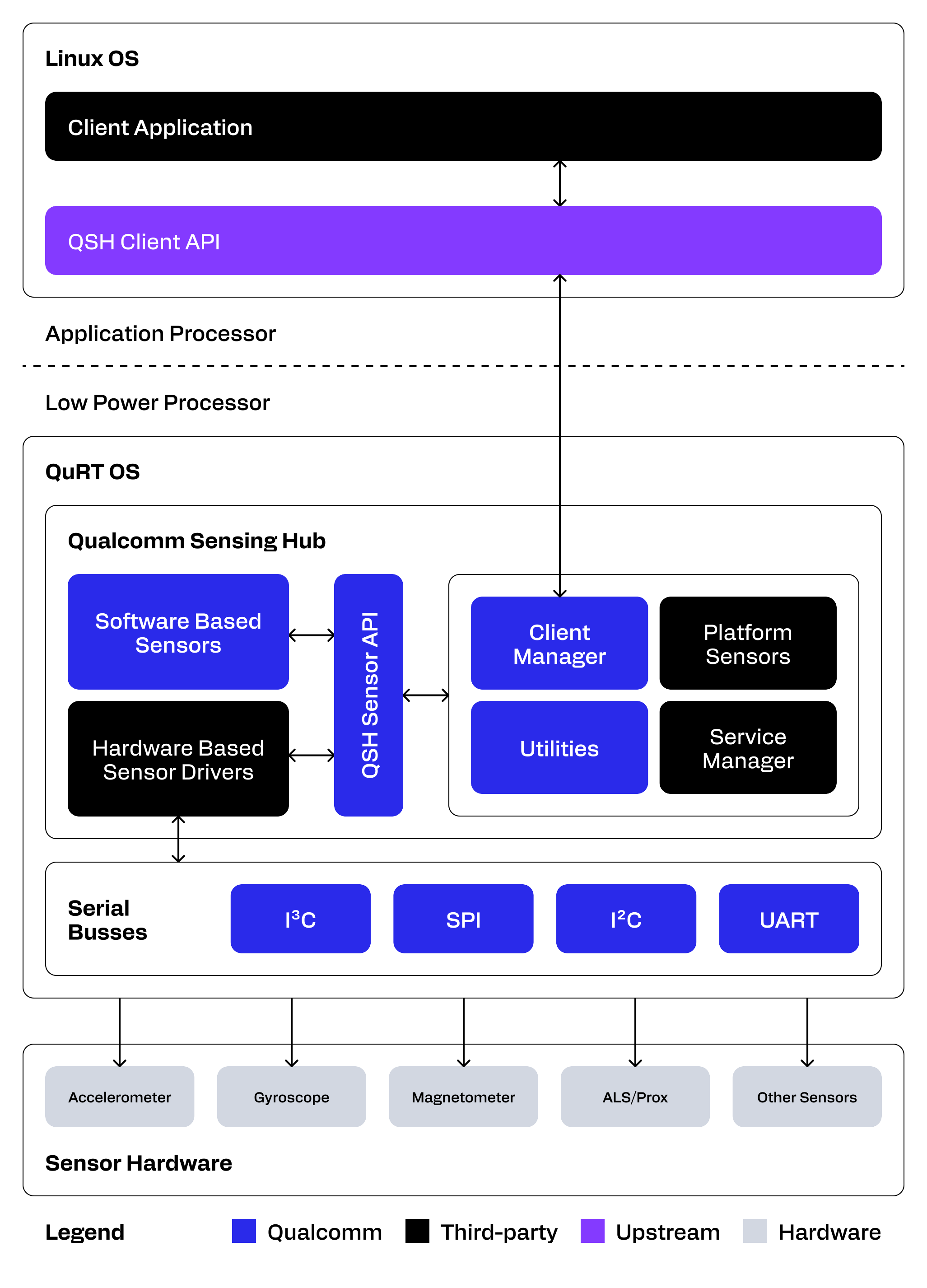

The Qualcomm Sensing Hub provides a unified event-driven framework for both hardware and software-based sensors, abstracting away low-level protocol differences. With client APIs, sensor APIs, and core framework services, Qualcomm Sensing Hub ensures that accelerometers, IMUs, cameras, microphones, and custom drivers can all be treated as peers in the same system.
It also supports asynchronous bus transfer, nanopb protocol buffers, and a common API layer, making it easier to scale applications across device classes. In practice, this means developers can configure sensors, manage power rails, and batch or stream data consistently, without having to write one-off integrations for each sensor type.
For a full overview, see the QSH architecture documentation.
On top of Qualcomm Sensing Hub, developers can layer ROS (Robot Operating System), which abstracts low-level sensor protocols into a publish/subscribe framework. ROS nodes act as translators, converting raw feeds, whether from an I²C temperature sensor or a MIPI CSI camera, into structured messages that are easy to consume in apps, ML pipelines, or edge inference engines.
This dual approach of using Qualcomm Sensing Hub for consistency at the hardware layer, and ROS for orchestration at the software layer, creates a smoother developer experience across heterogeneous sensors.
Power Management
Designing efficient IoT systems entails making sure your devices can run continuously without draining batteries or generating heat. For many developers working on Linux or Ubuntu-based platforms, low-level firmware controls like voltage scaling or peripheral gating aren’t directly exposed. So how can you design for power efficiency without diving into chip-level firmware?
With architectures purpose-built for workload-specific efficiency. Modern SoCs in the Dragonwing ecosystem lineup are is designed with domain-specific compute blocks: dedicated engines that offload heavy tasks from the general-purpose CPU while consuming far less power.
- Visual workloads: Camera streams and imaging pipelines can be pre-processed by an Image Signal Processor (ISP), freeing the CPU for higher-level decision-making.
- Motion sensing: IMU and motion sensor data is routed through a low-power Sensor DSP, which filters and packages readings before they reach your main application, cutting down on unnecessary wake-ups.
- Video workloads: Hardware accelerators handle video encoding/decoding, sustaining high-throughput performance while minimizing energy draw.
- AI inference: Dedicated Qualcomm Hexagon NPUs execute ML models with high performance-per-watt, enabling continuous anomaly detection, sensor fusion, or natural language interactions without overwhelming the CPU.
Developer Checklist Callout: Power-Conscious Sensor Stack Design
- Triggered Processing: Only compute when an event (motion, anomaly) demands it.
- Sentinel Sensors & Sensor Islands: Use ultra-low-power sensors to gate higher-power components.
- On-Device AI Offload: Run inference locally to cut bandwidth and latency.
- Low-Power Protocols: Prefer Bluetooth, Zigbee, or NB-IoT for always-on links.
- Hardware Sleep States: Align application behavior with supported Dragonwing sleep modes.
A Quick Checklist for a Smooth Multi-Sensor Stack
From the first prototype to production deployments, multi-sensory stack success often comes down to the small implementation details that determine whether sensors cooperate seamlessly or fight for resources.
To help you stay on track, here’s a practical developer checklist to building smoother, more resilient multi-sensor systems.
- Start Small, Scale Gradually
Begin with one or two sensor types and validate the pipeline before adding more to catch compatibility issues early. - Use Consistent Data Formats
Standardize units, timestamps, and coordinate systems to simplify fusion logic. - Leverage Sensor Fusion Frameworks
Tap into the hardware and software optimizations to efficiently manage multi-modal inputs. - Synchronize Sensor Sampling Rates
Prevent lag or drift in fused outputs. For time-critical apps, use Dragonwing hardware timestamping. - Test in Real Conditions
Field-test early to catch calibration issues caused by vibration, lighting, or temperature shifts. - Build for Debugging
Integrate logging and dashboards to inspect raw and fused sensor data during development.
Get Building with Multi-Sensor Stack Resources
Whether you’re sketching your first prototype or deploying to production, the Dragonwing developer ecosystem gives you tools and support you need to scale fast and build smart. Here’s where to start:
Dragonwing IoT Solutions: Explore the full breadth of an IoT ecosystem powered by Dragonwing, including compute tiers, reference designs, and deployment-ready modules.
Qualcomm AI Hub: Browse a library of pre-trained, deployment-ready AI models for on-device inference—including sensor fusion, anomaly detection, and LLMs. You can even filter by model size, task, or compatibility with Snapdragon platforms.
Edge Impulse: Train and deploy custom AI models directly to your edge device. Edge Impulse simplifies everything from data collection to inference optimization—and supports Snapdragon NPUs out of the box.
Rubik Pi 3 Docs: If you’re building on the Rubik Pi 3 powered by the Dragonwing QCS6490, this quick start guide and hardware manual will get your board booted and sensors configured in minutes.
Join the Discord Developer Community: Validate ideas, troubleshoot builds, or just hang out with fellow Snapdragon developers working on edge AI, robotics, and industrial IoT. The Qualcomm Developer Discord is open and growing.
FAQs
What’s the difference between sensor data aggregation and sensor fusion?
Aggregation means collecting raw data streams from multiple sensors into one place. Fusion goes a step further: combining and interpreting that data to create higher-level insights. For example, aggregation might collect accelerometer and gyroscope data, but fusion uses both to calculate orientation in 3D space.
How do I choose the “right” sensors for my IoT project?
Start with your use case. If you’re monitoring an environment, prioritize environmental sensors (temperature, humidity). For robotics, motion and vision sensors are crucial. After choosing sensors, balance requirements like data rate, accuracy, power consumption, and interface support. Start small. Add one or two sensors, validate the pipeline, and scale gradually as your application matures.
What’s the biggest advantage of running sensor fusion on-device instead of the cloud?
Running AI inference locally reduces latency, improves privacy, and lowers bandwidth costs. The Dragonwing ecosystem from Qualcomm Technologies is designed for edge-first compute, with NPUs and sensor DSPs that deliver high performance per watt.
How does Qualcomm help with power management for continuous sensing?
Qualcomm platforms include domain-specific compute blocks (ISPs, Sensor DSPs, Hexagon NPUs) and sensor islands that help keep always-on workloads running in ultra-low-power modes. Developers don’t need to micromanage power, these optimizations are baked into the SoC.
Addendum: Multi-Sensor IoT Glossary
Analog-to-Digital Converter (ADC): Converts analog sensor signals (e.g., voltage from a thermocouple) into digital data for processing.
Inertial Measurement Unit (IMU): A sensor package combining accelerometers, gyroscopes, and sometimes magnetometers to track motion and orientation.
MIPI CSI: A high-speed camera interface standard used to connect image sensors directly to a processor.
Inter-Integrated Circuit (I2C): A low-speed, two-wire interface used for short-distance communication between sensors and controllers.
Serial Peripheral Interface (SPI): A high-speed communication bus used for sensors needing faster data transfer, such as IMUs and ADCs.
Universal Asynchronous Receiver-Transmitter (UART): A simple, widely-used interface for transmitting serial data, often used in GPS modules or radio modules.
Sensor Fusion: The process of combining data from multiple sensors to produce more accurate, reliable, or comprehensive insights.
Duty Cycling: A power management technique where sensors and processors wake only at intervals or when triggered.
Edge AI: Running AI models locally on a device instead of relying on cloud-based processing, improving latency, privacy, and autonomy.
Rajan Mistry, Engineer, Senior Staff, Qualcomm
