Split-pixel HDR technology is a game-changer in embedded vision, allowing camera systems to capture a broader range of brightness levels for more vibrant and true-to-life images. Explore the two HDR modes, see how split-pixel HDR works, and learn why it is so popular.
Split-pixel HDR (High Dynamic Range) technology holds significant importance in the realm of embedded vision as it enables camera systems to capture and reproduce a wider range of brightness levels. It is also known as sub-pixel HDR technology as it involves splitting each pixel on the sensor into two sub-pixels to capture the brighter and darker areas of the scene. Since the camera system simultaneously captures images – not sequentially, this results in reduced motion blur and delivers more vibrant and true-to-life images. Basically, it provides a more accurate representation of colors – thereby delivering images that closely resemble the natural color tones of the scene.
Some of the popular use cases of split-pixel HDR include automotive imaging for ADAS and autonomous vehicles, medical imaging for accurate diagnostics, and more.
In this blog post, we’ll look at the different HDR modes, find out how split-pixel HDR works, and get insights into why this technology is gaining prominence.
What are the different HDR modes?
1. Multi-exposure or traditional HDR
By using both short and long exposures, this mode makes it easy to effectively capture a wide range of brightness levels, from the brightest highlights to the darkest shadows, in a single image. This technique helps preserve details in high-contrast scenes and low-light conditions, resulting in images with improved dynamic range and enhanced visual quality.
The short-exposure image is captured to preserve details in the highlight areas of the scene, while the long-exposure image is captured to retain details in the shadow areas. These multiple exposures are then processed and merged using specialized algorithms to create a final HDR image that combines the properly exposed parts of each exposure.
2. Split-pixel HDR
As previously mentioned, split-pixel HDR technology works by splitting each pixel on the sensor into two sub-pixels. One has a higher sensitivity to light (typically referred to as the “highlight” pixel), and the other has a lower sensitivity to light (typically referred to as the “shadow” pixel).
The highlight pixel captures details in the brighter areas of the scene, while the shadow pixel captures details in the darker areas.
How does the split-pixel HDR technique work?

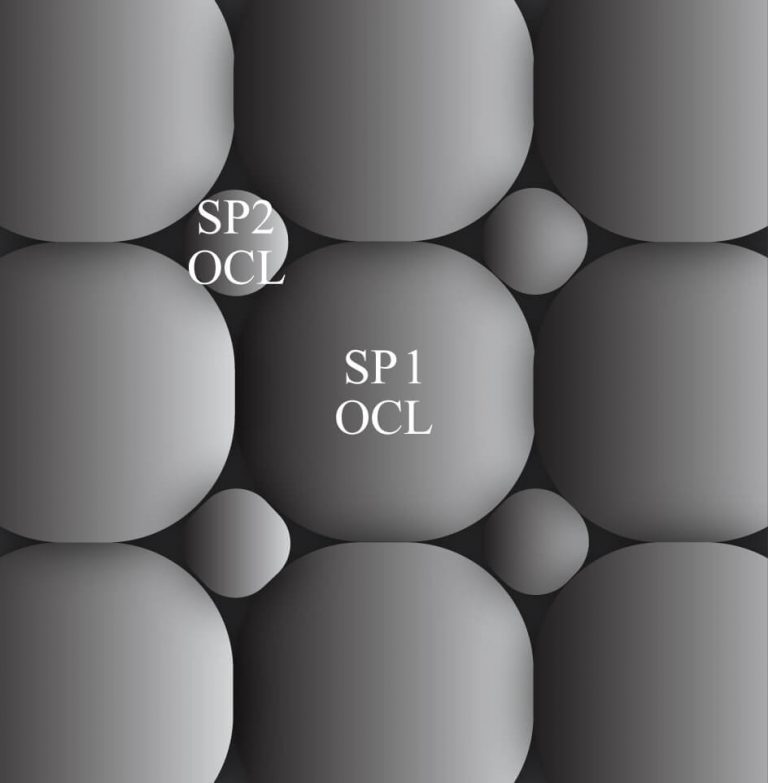

A single pixel consists of one each of large and small on-chip microlens (OCL). The OCL of SP2 is located in the gap section of the OCL of SP1. One pixel is equipped with a “high sensitivity pixel that brightly projects a dark subject” and a “pixel that does not easily become saturated, even with bright subjects.”
The combination of a signal from those two pixels has made it possible to obtain a signal with a wide dynamic range so that even if the scene has high contrast, such as backlit conditions or tunnel entrances and exits in the daytime, there is no loss of blackout in the dark parts and no blowout in the bright parts.

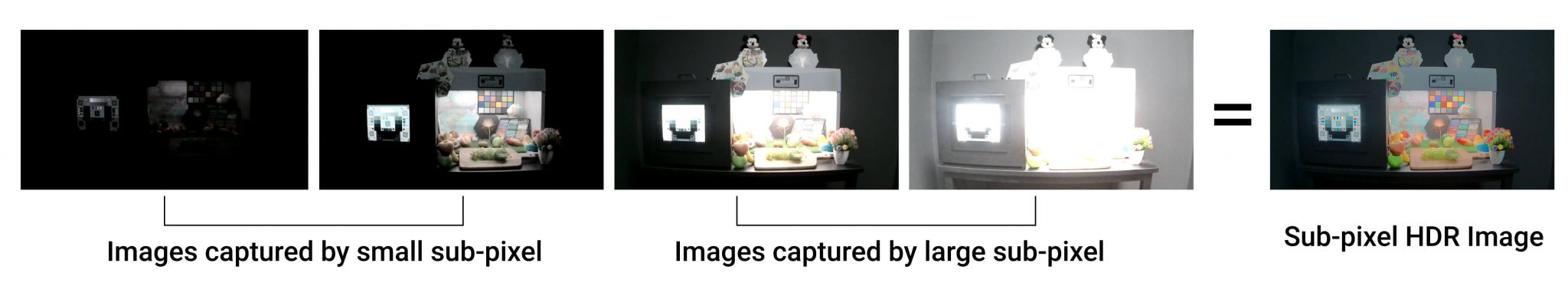

A large sub-pixel is used for darker parts of an image, and a small sub-pixel for the mid-to-high light parts of image captures to extend the dynamic range. The big pixel collects more light and therefore saturates in brighter conditions.
Conversely, the small pixel can be exposed for longer but will not saturate easily because much less light is collected. The overall effect of having the large pixel working in low-light conditions and the small pixel in brighter conditions is to extend the dynamic range.
For the HDR merging, there are totally four 12-bit readouts from each pixel:
- SP1_HCG — Sub pixel 1 High Conversion Gain
- SP1_LCG — Sub Pixel 1 Low Conversion Gain
- SP2_HCG — Sub Pixel 2 High Conversion Gain
- SP2_LCG — Sub Pixel 2 Low Conversion Gain
For each frame exposure, four lines – SP1_HCG, SP1_LCG, SP2_HCG and SP2_LCG – are combined and generated as a 24-bit output value. It is then processed by the ISP, which is part of the camera module and outputs the 8-bit YUV data used by most applications.
This split or sub-pixel architecture helps capture a High Dynamic Range of 120dB – using the above technique.
Advantages of leveraging the split-pixel HDR technique

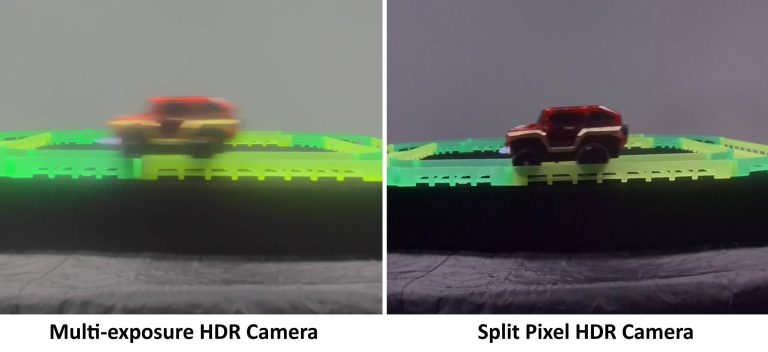

Split-pixel HDR technology offers several advantages over traditional methods when it comes to capturing dynamic scenes with moving objects. While traditional HDR techniques using different exposures can result in motion artifacts or blur, split-pixel HDR technology overcomes this limitation. By capturing images at the same timing, it eliminates motion blur, ensuring that moving objects appear sharp and well-defined.
However, it’s important to note that split-pixel HDR technology may still have some rolling artifacts due to the nature of the capture process. Despite this, this technology remains advantageous compared to traditional HDR techniques as it effectively addresses the issue of motion blur, resulting in sharper and more detailed images of moving objects.
